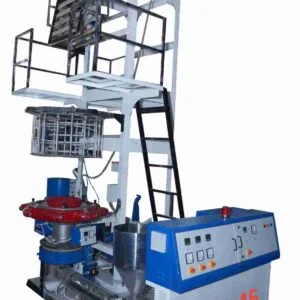

Mono Layer Extruder Machines (SGT-55) :
- Flender Germany made gear box
- Main Motor direct connection with gear box, saving power consumption
- Spiral type die head fir stretch film making
- High efficiency dual lip air ring
- Pneumatic take- up unit, equipped AC motor with inverter control
- In-line film tension control system
- Mechanics surface friction back to back winder
- Precious SSR +PID temperature controller
| MODEL | SGT-55 |
| WIDTH OF LAYFLAT | 1220 MM |
| EXTRUDER | |
| SCREW DIA | 55 MM |
| SCREW RATIO | 27 L/D |
| MAIN MOTOR | 15(20) KW(HP) |
| HEATER CAPACITY | 8.33 KW |
| SCREW RPM | 0-115 |
| OUT PUT | 70 KG/HR |
| DIE | |
| DIE SIZE (1) | HDPE DIA 75-125 MM |
| DIE SIZE (2) | LDPE DIA 150-200 MM |
| FILTER TYPE | CANDLE |
| HEATER CAPACITY | 7.1 KW |
| TAKE OFF | |
| NIP ROLL SIZE | 42” INCH |
| MAIN SIZE | 0.75(1) KW(HP) |
| WINDER | |
| ATTACHMENT | SEPARATE SINGLE STATION |
| TOTAL HEATING LOAD | 15.5 KW |
| TOTAL CONNECTED LOAD | 36.25 KW |
| SPACE REQUIREMENT L*W*H | 6*3*7 |
