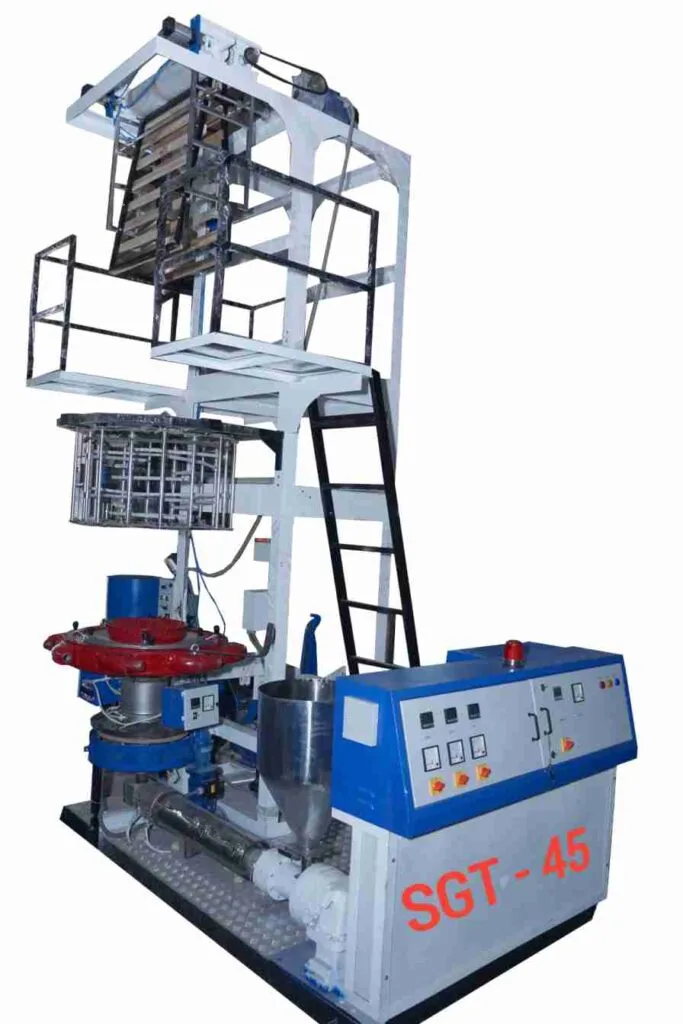

Mono Layer Extruder Machines

Layflat Width : 300 mm
Screw Diameter : 25 mm
Main Motor : 3.8(5) kw(hp)
Heater Capacity : 2.0 kw
Max. Output : 15 kg/hr

Layflat Width : 460 mm
Screw Diameter : 32 mm
Main Motor : 5.75(7.5) kw(hp)
Heater Capacity : 3.5 kw
Max. Output : 25 kg/hr

Layflat Width : 610 mm
Screw Diameter : 40 mm
Main Motor : 7.5(10) KW(HP)
Heater Capacity : 5.7 kw
Max. Output : 35 kg/hr

Layflat Width : 760 mm
Screw Diameter : 45 mm
Main Motor : 15(20) KW(HP)
Heater Capacity : 6.0 kw
Max. Output : 65 kg/hr

Layflat Width : 1220 mm
Screw Diameter : 55 mm
Main Motor : 15(20) KW(HP)
Heater Capacity : 8.33 kw
Max. Output : 70 kg/hr
